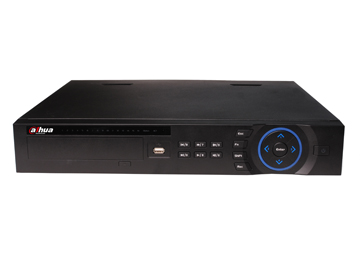

24/32CH 720P 1.5U HDCVI DVR

>Support HDCVI/IP Video input
>H.264 dual-stream video compression
>HCVR5424/5432L: All channel 720P realtime recording
>2HDMI/VGA/TV simultaneous video output
>16 channel synchronous realtime playback, GRID interface & smart search
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ dome camera
>Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 3 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
ModelDH-HCVR5424LDH-HCVR5432L
System
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Video
Input24 channel, BNC32 channel, BNC
StandardHDCVI720P HDCVI Camera
IP1080P/720P/D1/CIF IP Camera
Audio
Input4 channel, BNC
Output1 channel, BNC
Two-way Talk1 channel Input,1 channel Output, BNC
Display
Interface2 HDMI, 1 VGA, 1 TV
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Display Split1/4/8/9/16/251/4/8/9/16/25/36
Privacy Masking4 rectangular zones (each camera)
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio CompressionH.264/G.711
Record RateMain Stream:720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra StreamCIF/QCIF(1~25/30fps)
Bit Rate48~4096Kb/s
Record ModeManual, Schedule(Regular(Continuous), MD), Stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input16 channel
Alarm Output6 channel
Playback & Backup
Sync Playback1/4/9/16
Search ModeTime/Date, MD & Exact search (accurate to second)
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device/eSATA Device/Internal SATA burner/Network
Network
EthernetRJ-45 port (10/100M/1000M)
Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Storage
Internal HDD4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB
External HDD1 eSATA port, up to 16TB
Auxiliary Interface
USB Interface3 ports (2 Rear), USB2.0
RS2321 port, For PC communication & Keyboard
RS4851 port RS485 for PTZ control,1 port RS422 for Keyboard
General
Power SupplyAC 100~240 V, 50/60 Hz
Power Consumption40W(Without HDD)
Working Environment-10°C ~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H)1.5U, 440mm×416mm×68mm
Weight6KG(without HDD)
