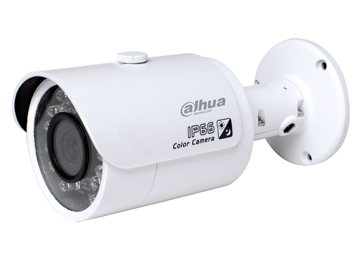

1.4Megapixel 720P Water-proof IR HDCVI Camera

Model	HAC-HFW2120S
ผู้ผลิต	DAHUA
ประเภท	กล้องวงจรปิดแบบธรรมดา
ราคา	0.00 บาท

สั่งซื้อสินค้า

• Features
• Specifications

>1/3" 1.4Megapixel CMOS
>25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V

Model	DH-HAC-HFW2120SP	DH-HAC-HFW2120SN
Camera
Image Sensor	1/3" 1.4Megapixel CMOS
Effective Pixels	1305(H)×1049(V)
Electronic Shutter	1/3s~1/100,000s
Video Frame Rate	25/50fps@720P		30/60fps@720P
Synchronization	Internal
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length	30m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D
OSD Menu	Support
Lens
Focal length	6mm (2.8 mm, 3.6mm, 8mm optional)
Angle of View	H: 46.5º(89º/70º/35º)
Mount Type	M12
General
Power Supply	DC12V±10%
Power Consumption	Max 4.7W
Working Environment	-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66
Dimensions(W×D×H)	Φ65mm×154.7mm
Weight	0.38kg
Others	Default: bracket included
