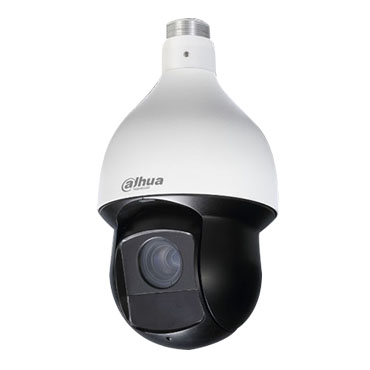

| Model | DH-SD59212S-HN | DH-SD59220S-HN | DH-SD59230S-HN |
| Camera |
| Image Sensor | 1/2.8” CMOS |
| Effective Pixels | 1944(H) x 1092(V), 2Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s |
| Min. Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
| S/N Ratio | More than 55dB |
| Camera Features |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Privacy Masking | Up to 24 areas |
| Digital Zoom | 16x |
| Lens |
| Focal Length | 5.1mm~61.2mm
(12x Optical zoom) | 5.5mm ~ 110.0mm
(20x Optical zoom) | 4.3mm~129mm
(30x Optical zoom) |
| Max Aperture | F1.6~ F3.0 | F1.6 ~ F3.5 | F1.6~ F5.0 |
| Focus Control | Auto / Manual |
| Angle of View | H: 51.3° ~ 4.64° | H: 51° ~ 2.60° | H: 65.1° ~ 2.34° |
| Close Focus Distance | 100mm~ 1000mm |
| PTZ |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s |
| Preset | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
| IR Distance | 80m (DC12V)
100m (AC24V) |
| Video |
| Compression | H.264 / MJPEG |
| Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240) |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) |
| Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
| Audio |
| Compression | G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
| Interface | 1/1 channel In/Out |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility | ONVIF PSIA CGI |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot | Micro SD, Max 64GB |
| Alarm | 2/1 channel In/Out |
| General |
| Power Supply | AC24V/ DC12V+POE plus |
| Power Consumption | DC12V: 13W, 20W (IR on)
AC24V: 13W, 23W (IR on) |
| Working Environment | DC12V: -30ºC ~ 60ºC / Less than 90% RH
AC24V: -40ºC ~ 70ºC / Less than 90% RH |
| Ingress Protection | IP66 |
| Dimensions | Φ186.0(mm) x 309(mm) |
| Weight | 3.5kg |
